ТНПА СуперГНОМ

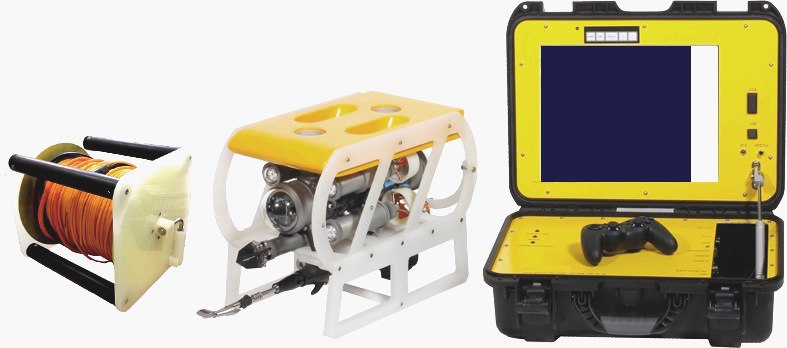

The model includes a manipulator, all-round sonar, and hydroacoustic navigation system. The device can be equipped with a gun with a laser sight. Can be upgraded to operate at depths of up to 250 meters.
Technical specifications
Vehicle |
|
| Operating depth | 150 m |
| ROV dimensions | 360x220x200 mm |
| ROV weight | 5 kg |
| Thrusters | 6 thrusters 4 forced horizontal, 2x vertical (24 V/16 Watt) |
| Cruising speed up | 4 knots |
| Frame | Protection polypreopylene frame |
Cable |
|
| Maximum cable length | 250 m |
| Cable diameter | 4.5 mm |
| Full system weight | 25 kg |
Camera |
|
| Camera type | 2 color camera (front and rear) |
| Camera resolution | 700 TV lines |
| Matrix | 1/3" Interline Transfer CCD |
| Sensitivity | 0,1 lux |
| Focusing | auto |
| Camera tilt | +/- 50º |
LEDs |
|
| LEDs quantity | 4 clusters of ultra-bright LEDs (variable intensity) |
| Other | Additional rear lights |
Equipment |
|
| Sensors | compass, depth sensor, auto guide mode, auto depth mode |
| Monitor | LCD TFT 15" ( High image contrast, easy to read in the sun ), waterproof case integrated |
| Management | Wireless joystick |
| Digital video recorder | integrated (SDHC max. 32Gb, D1 -704 x 576) |
| Grabber with grips | 2-functions (controlled from joystick, gran + rotate) |
- surface control/power supply unit 110-230VAC, monitor LCD TFT 15", waterproof case integrated
- real-time video image enhancement system
