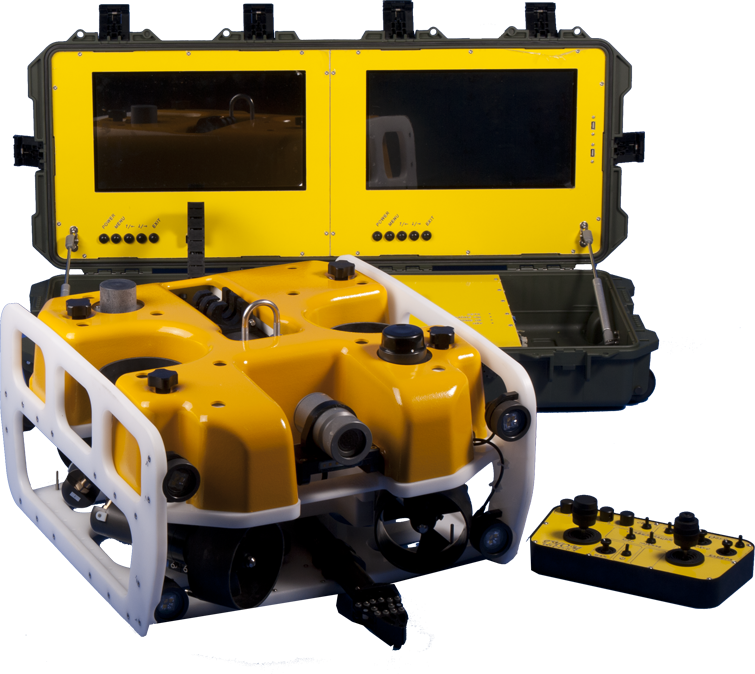

ТНПА ГНОМ ПРО Вектор
This model is equipped with four main thrusters arranged in a vector pattern.
Technical specifications
Vehicle |
|
| Operating depth | 300 m (500 m - optional) |
| ROV dimensions | 660x550x400 mm |
| ROV weight | 35/100,0 kg |
| Thrusters | 6 x: 4х horizontal, 2x vertical |
| Cruising speed up | 3 knots |
| Frame | Protection polypreopylene frame |
| Full system weight | 35-100 kg |
Cable |
|
| Maximum cable length | 400 m |
| Cable diameter | 12 mm |
Camera |
|
| Camera type | 2 color FullHD camera (front and rear) |
| Camera resolution | 720x1080 |
| Matrix | 1/3 |
| Sensitivity | 0,01 lux |
| Focusing | auto |
| Camera tilt | ±70° |
LEDs |
|
| LEDs | 6 |
| Other | 2 ultra lights LEDs - Front , 2x ultra lights LEDs - Rear (variable intensity) |
Equipment |
|
| Sensors | compass, depth sensor |
| Monitor | LCD TFT 15" |
| Digital video recorder integrated | SDHC max. 32Gb, D1 -704 x 576 |
| Management | Wireless joystick |
