ТНПА ГНОМ Стандарт

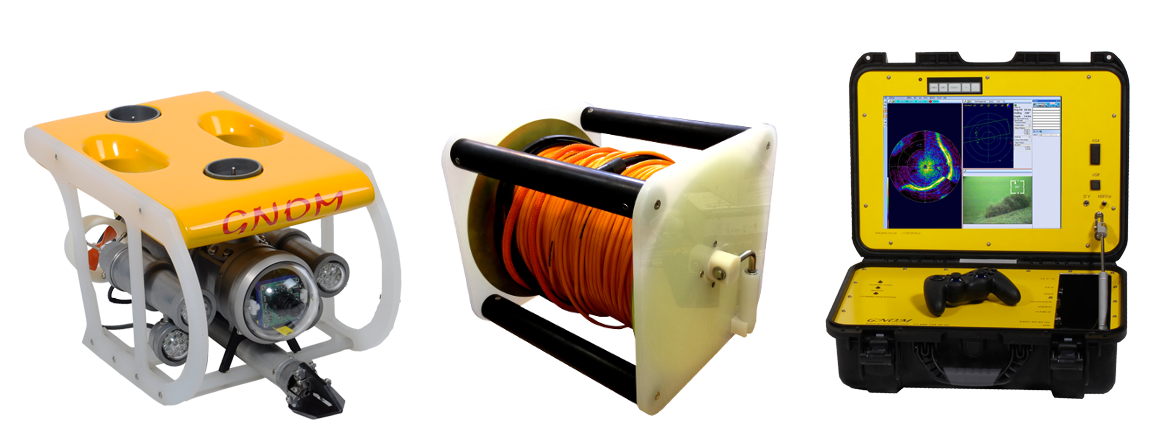

The ROV is adapted for underwater inspection work in hard-to-reach places.
Technical specifications
Vehicle |
|
| Operating depth | 150 m |
| ROV dimensions | 310x180x150 mm |
| ROV weight | 3,0 kg |
| Thrusters | 3 thrusters (2 x horizontal, 1x vertical) |
| Cruising speed up | 3 knots |
| Frame | protection polypreopylene frame |
Cable |
|
| Maximum cable length | 250 m |
| Cable diameter | 4 mm |
| Full system weight | 20 kg |
Camera |
|
| Camera type | 2 color camera (front and rear) |
| Camera resolution | 800 TV lines |
| Matrix | color camera 1/3", Super HAD II CCD |
| Sensitivity | 0,1 lux |
| Focusing | auto |
| Camera tilt | no |
LEDs |
|
| LEDs quantity | Two clusters of ultra-bright LEDs (variable intensity) |
Equipment |
|
| Sensors | compass, depth sensor (on-screen overlay, autodepth mode) |
| Monitor | LCD TFT 15" (High image contrast, easy to read in the sun), waterproof case integrated |
| Management | Wireless joystick |
| Digital videorecorder | SDHC max. 32Gb, D1 -704 x 576) |
| Grabber with grips | 2-functions (controlled from joystick, gran + rotate) |
