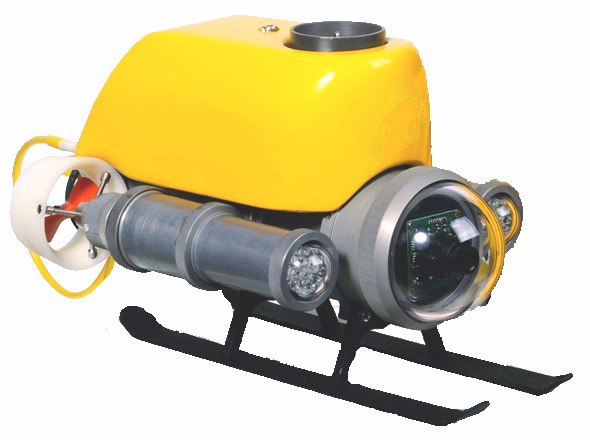

ТНПА ГНОМ Микро
Compact and simple model designed for difrent tasks.
Technical specifications
Vehicle |
|
| Operating depth | 50 m |
| ROV dimensions | 450x300x280 mm |
| ROV weight | 1,5 kg |
| Thrusters | Horizontal thruster with lights (cluster 9xLED), Vertical thruster |
| Cruising speed up | 2 knots |
| Frame | Protection polypreopylene frame |
Cable |
|
| Maximum cable length | 50 m |
| Cable diameter | 4 мм |
| Full system weight | 11 kg |
Camera |
|
| Camera type | Color camera |
| Camera resolution | 800 TV lines |
| Matrix | 1/3 |
| Sensitivity | 0,3 lux |
| Focusing | - |
| Camera tilt | Camera tilt servo ±50º with dome |
LEDs |
|
| LEDs | Two clusters of ultra-bright LEDs (variable intensity) |
| Other | Horizontal thruster with lights (cluster 9xLED) |
Equipment |
|
| Sensors | Digital compass, Depth sensor |
| Monitor | LCD TFT 9/15" (High image contrast, easy to read in the sun), waterproof case integrated |
| Digital video recorder integrated | Digital video recorder integrated (SDHC max. 32Gb, D1 -704 x 576) |
| Management | Wireless joystick |
| Grabber with grips | - |
- The PC compatible single board computer is connected with touch LCD monitor 15" and integrated into the control case. Standard interfaces (USB, Ethernet, COM, etc), the video grabber board.
- Hand reel K260 with sliding contact (Up to 250 m tether 4 mm).
- Monitor LCD TFT 9"/monitor LCD TFT 15"
